The Analog Advantage: Why High-End RF Systems Demand Low Phase Noise TCXOs

In an industry obsessed with miniaturization, there remains a critical sector where performance cannot be sacrificed for size: Precision RF Infrastructure and High-End Instrumentation.

For system architects designing Doppler radars, satellite uplinks, or spectrum analyzers, the enemy is Phase Noise. While modern digital TCXOs are tiny and cheap, they often introduce "quantization steps" in their frequency correction capabilities.

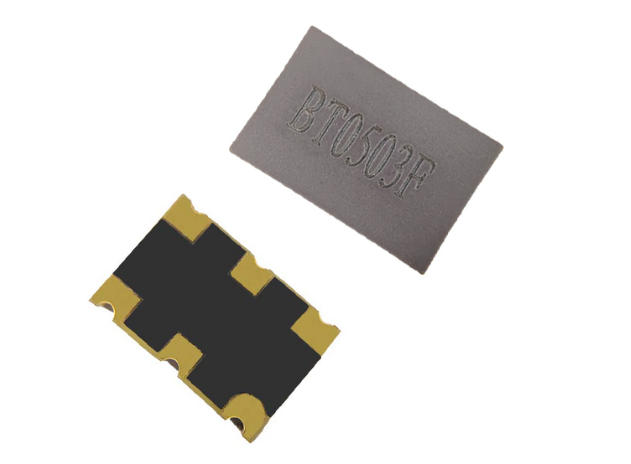

Enter the XTALTQ BT0503F, a 5.2x3.4mm Analog Circuit TCXO designed for one purpose: Uncompromising Signal Purity.

Analog vs. Digital Compensation: The Battle for a Clean Signal

To understand the value of the BT0503F, one must look at the noise floor.

Most compact TCXOs utilize a digital PLL or digital logic to compensate for temperature drift. While effective, this creates discrete steps in frequency adjustment. In sensitive applications (like detecting a slow-moving drone on a radar), these digital artifacts can mask the target signal.

The BT0503F utilizes a purely Analog Compensation Circuit.

· No Stepping: The frequency correction follows a smooth, continuous curve.

· Cleaner Spectrum: By eliminating digital switching noise, we achieve superior close-in phase noise performance (e.g., at 10Hz and 100Hz offsets).

· Result: A pristine carrier signal essential for high-order modulation schemes (like 256-QAM) or critical measurement benchmarks.

Why Size Matters (5.2x3.4mm)

You might ask, "Why is this module 5.2x3.4mm?"

In high-precision frequency control, physics dictates that mass and volume can be virtues. The larger footprint of the BT0503F allows for:

· High-Q Crystal Design: We can utilize larger quartz cuts which inherently possess higher Quality Factors than microscopic SMD crystals, directly translating to better short-term stability.

· Thermal Stability: The larger package acts as a thermal buffer, dampening rapid ambient temperature fluctuations before they reach the crystal core.

· Robust Circuitry: Ample board space allows for the use of high-performance discrete components in the oscillation stage, rather than integrated, noisy silicon shortcuts.

Ideal Applications for the BT0503F

This component is engineered for systems where "Good Enough" is not an option:

· Test & Measurement Equipment: Frequency counters and synthesizers requiring a clean reference.

· Radar & SatCom: Maintaining signal integrity over long distances where phase noise equates to data loss.

· Broadcast Transmitters: Ensuring carrier stability for high-power transmission.

Technical Specifications at a Glance

· Model: BT0503F

· Technology: Analog Temperature Compensation

· Dimensions: 5.2 x 3.4 mm (SMD package reliability)

· Key Feature: Ultra-Low Phase Noise & High Stability

Conclusion

When your design requires the lowest possible noise floor, you need an oscillator built on the principles of analog precision. The BT0503F is the robust heartbeat your infrastructure deserves.

[View BT0503F Datasheet & Phase Noise Plots]

Building a legacy system or a new high-precision prototype? Contact XTALTQ engineering for integration support.
