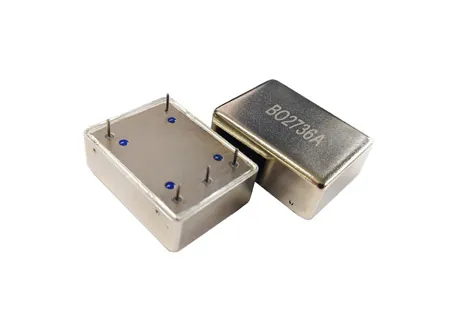

DIP (36mm*27mm), Fast Warming-up, High Stability, Low Phase Noise OCXO

DIP (36mm*27mm), Fast Warming-up, High Stability, Low Phase Noise OCXO

  • ocxo
  • bo2736 ultra low phase noise ocxo

LTE, BTS, CATV, LAN, GPS Tracking, Test & Measurement Equipment

Specifications of DIP (36mm*27mm), Fast Warming-up, High Stability, Low Phase Noise OCXO


SeriesBO2736H
Size36*27*13mm
Output WaveformSine Wave
Supply Voltage12V,5.0V
Operating Temperature-0℃~+70℃,-20℃~+70℃,-30℃~+85℃,-40℃~+70℃,-40℃~+85℃,-50℃~+90℃,-55℃~+95℃,Customized


SeriesBO2736L
Size36*27*13mm
Output WaveformLVCMOS,Sine Wave
Supply Voltage12V,5.0V
Operating Temperature-0℃~+70℃,-20℃~+70℃,-30℃~+85℃,-40℃~+70℃,-40℃~+85℃,-50℃~+90℃,-55℃~+95℃,Customized


FeaturesTight Stability
Low Phase Noise
Dimensions36mm*27mm
Freq. Range10MHz~200MHz
Freq. Stability Range±3ppb~±500ppb
Phase Noise Range-170dBc/1kHz@10MHz
-165dBc/1kHz@100MHz


Application of DIP (36mm*27mm), Fast Warming-up, High Stability, Low Phase Noise OCXO


LTE, BTS, CATV, LAN,GPS Tracking, Test & Measurement Equipment


DIP(36mm*27mm), Fast Warming-up, High Stability, Low Phase Noise OCXO

DIP(36mm*27mm), Fast Warming-up, High Stability, Low Phase Noise OCXO
