DIP (25mm*25mm), Fast Warming-up, Wide Temperature Range, Ultra low phase noise Stable OCXO
Products
Explore Trending Topics

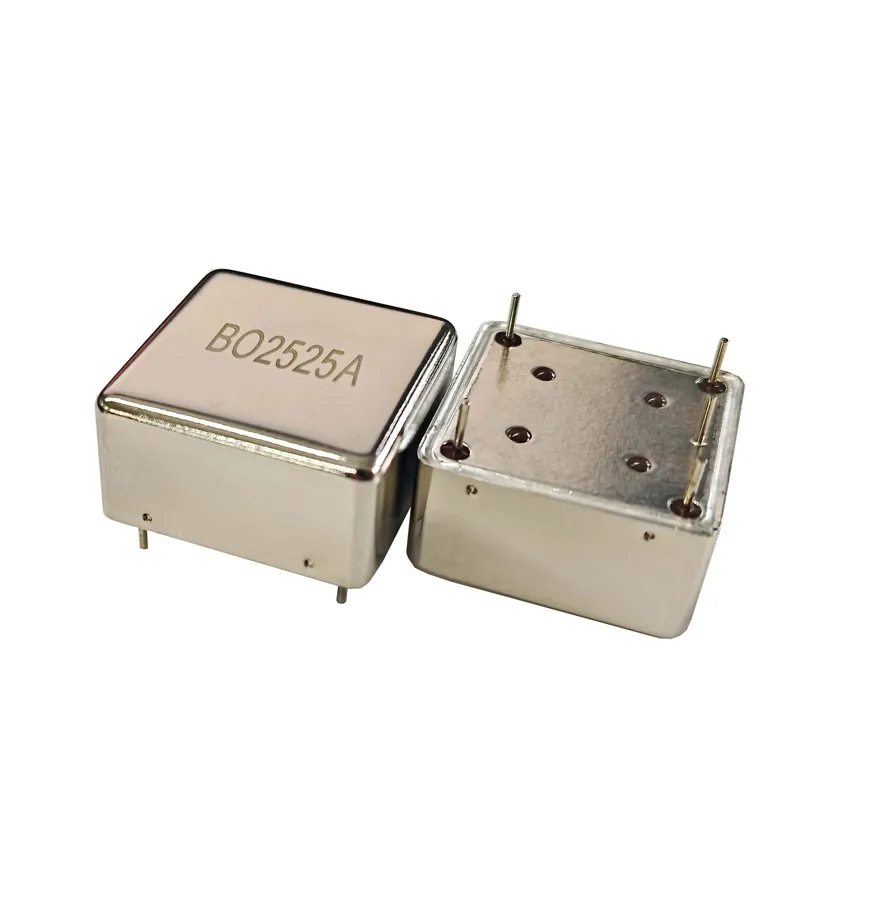

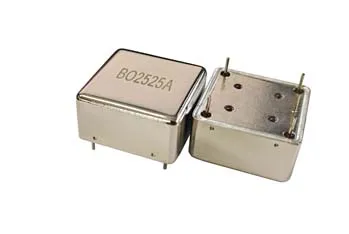

DIP (25mm*25mm), Fast Warming-up, Wide Temperature Range, Ultra low phase noise Stable OCXO

BO2525
  • bo2525a

LTE, BTS, CATV, LAN, GPS Tracking, Test & Measurement Equipment

BO2525 Download PDF Contact Us

Specifications of DIP (25mm*25mm), Fast Warming-up, Wide Temperature Range, Ultra Stable OCXO

SeriesBO2525H
Size25.4*25.4*13mm
Output WaveformSine Wave
Supply Voltage12V，5.0V
Operating Temperature-0℃~+70℃，-20℃~+70℃，-30℃~+85℃，-40℃~+70℃，-40℃~+85℃，-50℃~+90℃，-55℃~+95℃，Customized


SeriesBO2525L
Size25.4*25.4*13mm
Output WaveformLVCMOS，Sine Wave
Supply Voltage12V，5.0V
Operating Temperature-0℃~+70℃，-20℃~+70℃，-30℃~+85℃，-40℃~+70℃，-40℃~+85℃，-50℃~+90℃，-55℃~+95℃，Customized


FeaturesTight Stability
Low Phase Noise
Dimensions25mm*25mm
Freq. Range10MHz~200MHz
Freq. Stability Range±3ppb~±500ppb
Phase Noise Range-170dBc/1kHz@10MHz
-165dBc/1kHz@100MHz


Application of DIP (25mm*25mm), Fast Warming-up, Wide Temperature Range, Ultra Stable OCXO


LTE, BTS, CATV, LAN, GPS Tracking, Test & Measurement Equipment


DIP(25mm*25mm), Fast Warming-up, Wide Temperature Range, Ultra Stable OCXO

DIP(25mm*25mm), Fast Warming-up, Wide Temperature Range, Ultra Stable OCXO
