In precision electronics, timing is everything. Temperature Compensated Crystal Oscillators (TCXOs) serve as the heartbeat of modern systems, from telecommunications infrastructure and GPS navigation to aerospace defense platforms and industrial instrumentation. Among the most critical TCXO parameters is phase noise — fluctuations in the oscillator's output signal phase that degrade system sensitivity, signal-to-noise ratio, and reliability. Ultra low phase noise TCXOs represent the pinnacle of oscillator technology, enabling systems to achieve the highest precision. XTALTQ, a specialized frequency control product manufacturer since 2009, offers a comprehensive portfolio of ultra low phase noise TCXOs for the most demanding applications. This article examines the technology, features, applications, and selection criteria for these precision timing components.
A Temperature Compensated Crystal Oscillator (TCXO) incorporates a temperature compensation circuit to maintain stable frequency output across a wide operating temperature range. Unlike standard crystal oscillators (XO) or oven-controlled crystal oscillators (OCXO), TCXOs balance frequency stability, power consumption, size, and cost.
Phase noise refers to rapid, short-term random fluctuations in the phase of a signal, expressed in dBc/Hz at specific offset frequencies. In a TCXO, phase noise is influenced by crystal quality, temperature compensation circuit design, voltage regulation, and circuit layout. An ultra low phase noise TCXO is engineered to minimize these fluctuations, achieving phase noise as low as -150 dBc/Hz at 1 kHz offset.

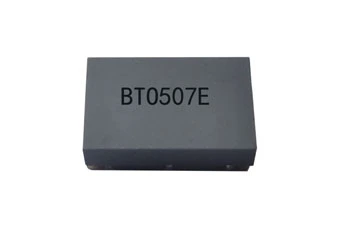

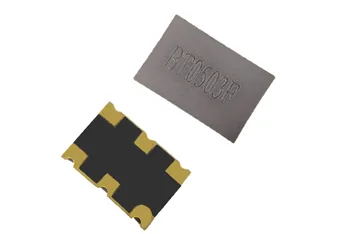

XTALTQ's ultra low phase noise TCXO product line includes multiple models. The BT0503F (5.2x3.4mm) offers phase noise of -150 dBc/Hz at 1 kHz with analog circuit design. The BT0507E (7.0x5.0mm) achieves -150 dBc/Hz at 1 kHz at 10 MHz with extreme stability and ±0.28 ppm over -40°C to 85°C. The BT0507N (7.0x5.0mm) covers high frequencies up to 100 MHz with phase noise of -140dBc/Hz. The BT0914A (14x9mm) offers frequencies up to 122.88 MHz with phase noise of -140 dBc/Hz. The BT3225AH (3.2x2.5mm) provides Stratum III level stability in a miniature package.
Ultra Low Phase Noise Performance: XTALTQ's TCXOs achieve phase noise levels as low as -150 dBc/Hz at 1 kHz offset, representing exceptional signal purity. This performance is critical for applications where signal integrity directly impacts system capability, such as radar systems, satellite communications, and precision test equipment.
High Frequency Stability: The TCXOs offer frequency stability ranges from ±0.05 ppm to ±1.0 ppm over temperature, ensuring reliable timing in environments with significant temperature variations. Some models, such as the BT0507E, maintain ±0.28 ppm stability even over the extended -40°C to 85°C range.
Wide Frequency Range: XTALTQ's ultra low phase noise TCXOs cover frequency ranges from 10 MHz to 125 MHz, accommodating diverse application requirements from standard reference frequencies to high-frequency communication systems.
Multiple Package Options: The product line includes SMD packages ranging from the miniature 3.2x2.5mm (BT3225AH) to the larger 14.0x9.0mm (BT0914A), as well as DIP packages (BT1220 at 12.6x20.2mm). This variety ensures compatibility with different PCB layouts and manufacturing processes.
Extended Operating Temperature Range: Several models support operating temperatures from -40°C to 85°C, with some extending to -55°C or up to 105°C, making them suitable for harsh environmental conditions in industrial, automotive, and aerospace applications.
Analog and Digital Compensation: XTALTQ offers both analog circuit TCXOs (such as the BT0503F) for applications requiring the purest signal characteristics, and digitally compensated models for applications requiring broader temperature range compensation.
Stratum III Level Compliance: The BT3225AH model meets Stratum III level stability requirements, making it suitable for telecommunications synchronization applications where network timing accuracy is regulated.
Ultra low phase noise TCXOs from XTALTQ serve critical timing functions across multiple industries:
GPS and Positioning Systems: Reduced phase noise directly enhances location tracking accuracy and timing synchronization in GPS receivers, GNSS modules, and precision agriculture systems, allowing faster satellite acquisition and more precise position calculations.
Telecommunications and 5G Base Stations: Ultra low phase noise TCXOs enable cleaner signal transmission, supporting higher data rates and fewer errors across wired and wireless networks. 5G base stations require precise timing to coordinate massive MIMO arrays and manage ultra-low latency communications.
Aerospace and Defense: Where secure communication is paramount, these TCXOs contribute to communication link robustness even in the presence of interference. Applications include radar systems, electronic warfare, satellite communications, and missile guidance.
Test and Measurement Instrumentation: Precision instruments such as spectrum analyzers, signal generators, frequency counters, and network analyzers rely on ultra-stable, low-noise reference oscillators for measurement accuracy.
Industrial and Medical: Industrial automation systems, medical imaging equipment, and precision devices benefit from the stable, low-noise timing that TCXOs provide.
Internet of Things (IoT): As IoT devices require precise timing for synchronization in dense networks, compact and power-efficient TCXOs like the BT3225AH enable reliable connectivity in small form-factor devices.
Selecting the appropriate TCXO requires careful evaluation of application-specific requirements:
Phase Noise Requirements: Determine the maximum acceptable phase noise at specific offset frequencies. Radar and satellite systems demand the lowest phase noise, while less critical applications may tolerate higher levels.
Frequency and Stability: Identify the required nominal frequency and stability over the operating temperature range. Telecommunications synchronization may require Stratum III compliance.
Operating Temperature Range: Consider environmental conditions. Industrial and automotive applications may require extended temperature ranges beyond commercial specifications.
Package Size and Mounting: Evaluate PCB space constraints. SMD packages are preferred for automated assembly, while DIP packages suit through-hole mounting.
Output Type: TCXOs may provide CMOS, sine wave, or other output types. Ensure compatibility with your system's interface requirements.
Power Consumption: For battery-powered applications, consider the TCXO's power consumption. Analog circuit designs typically consume less power than digital compensation circuits.
Supply Voltage: Verify compatibility with your system's supply voltage. Most TCXOs operate at 3.3V.
XTALTQ has established itself as a leading frequency control product manufacturer through several key differentiators:
Since 2009: Over 15 years of focused experience in crystal oscillators and frequency control products, with deep expertise in precision timing technology.
Comprehensive Product Portfolio: Full range including TCXO, OCXO, VCXO, Phase Locked Modules, SPXO, Crystal Resonators, VCO, Optical Transceivers, and GPSDO for one-stop sourcing.
Quality Certifications: ISO9001 certified, RoHS and REACH compliant, ensuring quality and environmental compliance for global markets.
OEM/ODM Capability: Custom frequencies, package sizes, and performance parameters tailored to specific applications.
Technical Expertise: Deep knowledge of crystal oscillator design, temperature compensation, and phase noise optimization.
Proven Reliability: Products deployed in GPS, telecommunications, instrumentation, industrial, medical, aerospace, defense, IoT, and 5G applications.
Ultra low phase noise TCXOs are enabling components in modern precision systems, where signal integrity and timing accuracy directly determine system performance. Whether in 5G base stations, GPS receivers, aerospace platforms, or precision instrumentation, the quality of the reference oscillator sets the ceiling for what the system can achieve. XTALTQ's combination of 15+ years of expertise, comprehensive product portfolio, ISO9001 certification, and OEM/ODM capability makes it a trusted partner for engineers and procurement professionals seeking high-performance timing solutions. With phase noise performance reaching -150 dBc/Hz and frequency stability down to ±0.1 ppm, XTALTQ's ultra low phase noise TCXOs deliver the precision and reliability that critical applications demand. Contact XTALTQ today to discuss your specific timing requirements and discover how their TCXO solutions can elevate your system performance.
