TCXO vs XO: Why Temperature Compensation is Critical for 5G and GNSS Precision

Navigating Frequency Stability: A Guide to Selecting High-Performance TCXOs for Harsh Environments

In the rapidly evolving landscape of telecommunications—particularly with the rollout of 5G networks and precision GNSS systems—signal integrity is paramount. For RF engineers, the greatest challenge often isn't generating a signal, but maintaining its stability under fluctuating thermal conditions. This is where the Temperature Compensated Crystal Oscillator (TCXO) bridges the critical gap between standard oscillators and expensive oven-controlled solutions.

The Engineering Challenge: Combatting Thermal Drift

Standard Crystal Oscillators (SPXO) adhere to the natural temperature curve of the quartz cut (typically an AT-cut). As ambient temperatures shift—whether in an outdoor telecom base station ranging from -40°C to +85°C or an industrial sensor near a heat source—the frequency

However, for modern Small Cell backhaul, IoT gateways, or GPS synchronization, such drift results in:

· Signal lock failure.

· Reduced data throughput.

· Increased bit error rates (BER).

Why TCXO is the Superior Choice for Precision Timing

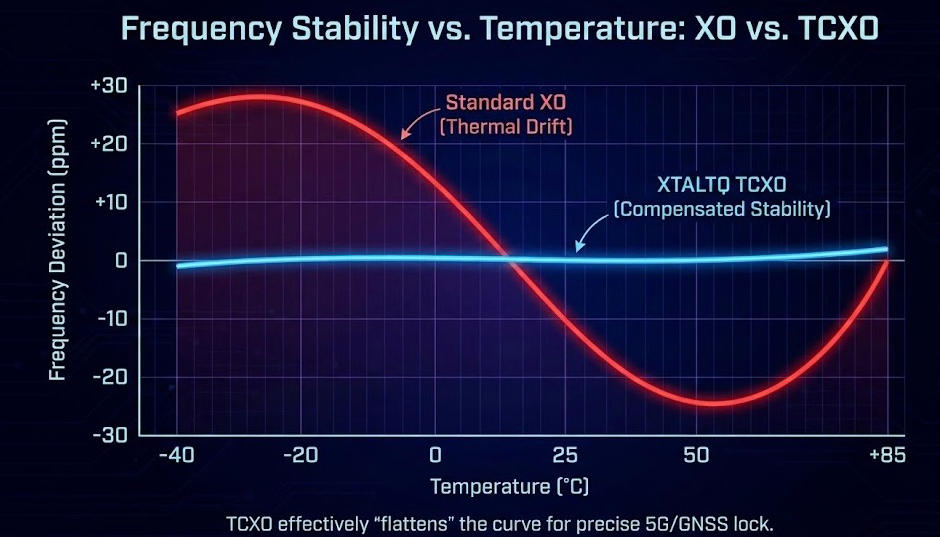

A TCXO integrates a compensation circuit that senses ambient temperature and applies a correction voltage to the varactor diode, effectively "flattening" the frequency-temperature curve. By upgrading to a high-quality TCXO, system architects achieve:

· Enhanced Stability: Achieving tight stabilities as low as ±0.05 ppm to ±2.0 ppm over wide temperature ranges.

· Low Phase Noise: Critical for modulation schemes in 5G and complex radar systems to maintain clear signal separation.

· Power Efficiency: Unlike OCXOs, which consume significant power to heat the crystal, TCXOs offer precision with minimal power draw, making them ideal for battery-operated portable devices.

Key Parameters for Selecting the Right TCXO

When browsing specifications (such as those found in the XTALTQ TCXO Series), engineers should prioritize the following metrics based on application:

· Frequency Stability: For GNSS applications, a stable frequency output is crucial.

· Phase Noise & Jitter: Essential for high-frequency data transmission to prevent signal degradation.

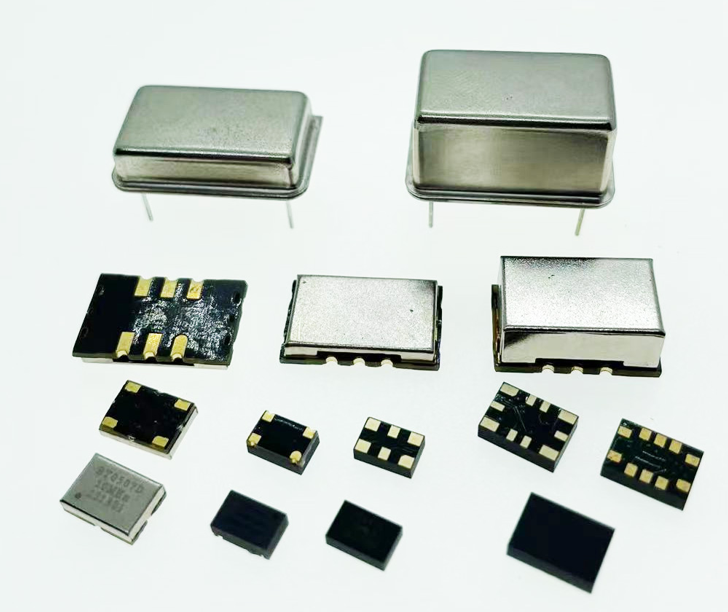

· Package Size: With the trend toward miniaturization, finding compact form factors (e.g., 5.2 x 3.4mm or 7.0 x 5.0mm) without sacrificing performance is key.

XTALTQ: Mastering the Balance of Precision and Reliability

Finding a supplier that can deliver consistent batch-to-batch consistency is as important as the spec sheet itself. XTALTQ specializes in advanced frequency control solutions. Our TCXO product line is engineered to meet the rigorous demands of:

· 5G Infrastructure: Ensuring network synchronization in outdoor environments.

· Automotive Electronics: Withstanding vibration and thermal shock.

· Smart Grid & Metering: Providing long-term reliability.

Our TCXOs utilize analog and digital compensation technologies to deliver superior phase noise performance and frequency stability. Whether you need a clipped sine wave or specific CMOS output, our engineering team supports customized requirements to fit your PCB layout.

Ready to Optimize Your System Design?

Don't let thermal drift compromise your project's performance. Explore our full range of Temperature Compensated Crystal Oscillators to find the exact match for your specifications.
